Special Order, allow 6 to 8 weeks delivery if in stock with Laguna. Check with a Busy Bee Team member for accurate stock status.

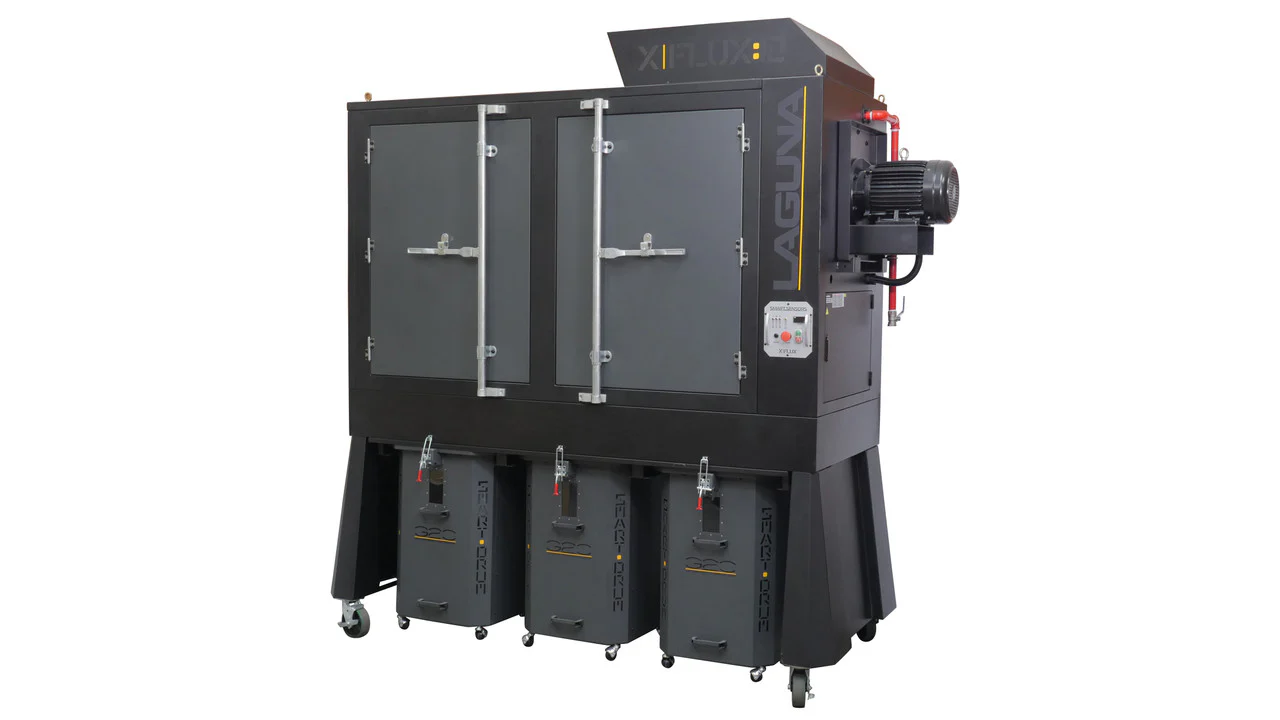

The X|Flux series from Laguna starts to get serious. These workhorse cyclones are geared towards clients who desire a single central unit for the entire shop.

Specifications:

Motor HP: 10 HP
Phase: 3
Voltage: 220V
Amps: 28 Amps
Hertz: 60
Plug: No
RPM: 3450
Main Motor Switch: Radio Frequency
Control Panel: Anodized Aluminum
Hand Held Remote Control: HF (High Frequency)
LED Warning Light Empty Drum: Yes
Canister Auto Clean controlled by Timer: Yes
Shop Setting CFM: 4700
Inlet CFM: 8070
Max Static Pressure (inches of water): 11″
Impeller/Fan Size: 15.5″
Impeller Material: Steel
Impeller Type: Radial Fin
Balancing of Fan: ISO 1940
Inlet Diameter: 12″
Drum Capacity: 54 Gal. X 3
Octagon Drum: Low pressure suction, swiveling casters
Drum collection Bag (Dia. x L): Plastic bag 29″ x 51″L
Canister Filter Type: White 1 Micron
Filtration Efficiency: 0.2-2micron @99.97%
MERV Rating: 12
Canister Diameter: Ø500mm (19.69″)
Canister length: 900mm (35.43″)
Filter Surface Area:” ”24.3m2 , 261.6 ft2″ (can you get RIGHT square in place here pls)
Canister Cleaning: Timed auto clean 2 x 10 seconds pr. work hour
Canister Filter Lower: Plastic bag 29″ x 24″L
Wheels: 6” industrial swiveling
US/CSA Approved : Yes
Decibel Reading: 80 d B(A) (@9.8ft)
Assembled Dimensions (L x W x H) 104” x 49” x 106”
Machine weight: 750kgs, 1653 Lbs.
Shipping weight: 830kgs, 1829 Lbs.
